Our Steel Piping System is

Steel Pipes & Fittings

certified

Note: Full details of all steel piping products can be found in catalogue and UL/FM certificates.

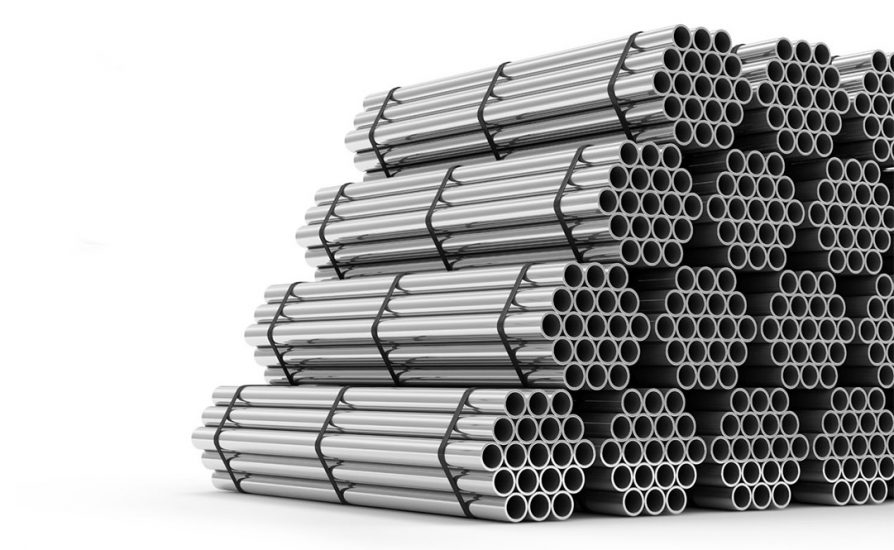

SHIELD Steel Pipes

SHIELD Steel Pipes a certified UL Listed & FM Approved. It is widely used in industrial and also domestic applications along with the complete range of fittings.

Description:

Types

Seamless, ERW

British Standards

BS 1387:1985 (EN 10255) Light, Medium & Heavy

American Standards

ASTM A53 Grade A & B, ASTM A252 Grade 1, 2 & 3, ASTM A106 Grade A, B & C

Ends

Plain, Grooved, Threaded, Beveled

Applications

Firefighting, HVAC/Chilled Water

Finishing

Galvanised, Black, Powder Coated

Note: For complete details, download our catalogue.

Download Catalogue
Steel Pipes & Fittings
Steel Pipes & Fittings

SHIELD Threaded Fittings

SHIELD Threaded Fittings a certified UL & FM approved. A high quality threaded fittings used to connect pipes into different sizes for water line as well as fire protection applications.

Description:

Material

Ductile Iron (ASTM A536, BS EN 1563), Malleable Iron (BS EN 1562)

Test Pressure

500 Psi

Applications

Firefighting, HVAC/Chilled Water

Finishing

Black, Hot Dipped Galvanised

British Standards - Dimensions

BS EN 10242, BS 143, BS 1256

British Standards - Threads

BS 21, ISO 7/1 (Taper)

American Standards - Dimensions

ASME B16.3, ASME B16.4, ASME B16.14, ASME B16.39

American Standards - Threads

ANSI B1.20.1

Note: For complete details, download our catalogue.

Download Catalogue

SHIELD Grooved Fittings

SHIELD Grooved Fittings a certified UL Listed & FM Approved. In addition, it provides an economical and efficient piping system solution. Moreover, it also offer significant benefits when compared to conventional types of pipe connections.

Description:

Material

Ductile Iron (ASTM A536 Grade 65-45-12)

Standards

British, American

Bolts

Carbon Steel (ISO 898-1 Class 8.8 Heat Treated)

Types

Grooved, Grooved to Threaded

Test Pressure

225~500 Psi

Application

Firefighting

Finishing

Red, Hot Dipped Galvanised

Note: For complete details, download our catalogue.

Download Catalogue
Steel Pipes & Fittings
Steel Pipes & Fittings

SHIELD Butt-Welded Fittings & Flanges

SHIELD Butt-Welded Fittings & Flanges used for changing direction, branching and to be mechanically joined into the system. It is also suitable for high pressure and high temperature applications.

Description:

Mater

Carbon Steel

Application

HVAC/Chilled Water

Type

Beveled End, Raised Face

Finishing

Black

Material

Carbon Steel

Standard - Buttweld

ASTM A234

Standard - Flange

ASTM A105

Dimension Standard

BS 4504 (PN10, 16, 25), ASME B16.5 (Class 150, 300), B16.9 & B16.28

Note: For complete details, download our catalogue.

Download Catalogue

SHIELD Pipe Support & Accessories

SHIELD Pipe Support & Accessories are the best solution for firefighting and HVAC applications. It also help to reduce vibration and sound.

Description:

Material

Ductile Iron, Low Carbon Steel, Mild Steel, Alloy Steel, EPDM

Standards

ASTM, ANSI, MSS-SP 69 & 58, WW-H-171-E, A-A-1192

Applications

Firefighting, HVAC/Chilled Water

Finishing

Electro Galvanised, Hot Dipped Galvanised, Galvanised

Note: For complete details, download our catalogue.

Download Catalogue
Steel Pipes & Fittings
Steel Pipes & Fittings

SHIELD Flexible Expansion Joints

SHIELD Flexible Expansion Joints a certified FM approved. Best suitable for absorbing movements in 3 directions caused by potential vibration or earthquake. It also provide minimal pressure loss and need less space.

Description:

Material

Carbon Steel, Stainless Steel

Standard

ANSI 321, 304

Operating Temperature

-80° ~ 600°C

Application

Firefighting, HVAC/Chilled Water

Test Pressure

250 Psi

Finishing

Red

Note: For complete details, download our catalogue.

Download Catalogue

SHIELD Flexible Sprinkler Drop

SHIELD Flexible Sprinkler Drop a certified UL & FM approved for firefighting application. Compatible with major domestic and commercial ceilings. Easy to install and also save time & labor.

Description:

Material

Stainless Steel 304

Standards

ANSI

Types

Braided, Non-Braided

Applications

Firefighting

Test Pressure

175 ~ 200 Psi

Bend Angle

Up to 180°

Note: For complete details, download our catalogue.

Download Catalogue
Steel Pipes & Fittings
Steel Pipes & Fittings

SHIELD Conduit System

SHIELD Conduit System, the most reliable system to protect the wiring across the building structure. In addition, the wall thickness and strength of steel makes metal conduit the most mechanical protection to enclosed conductors.

Description:

Material

Low Carbon Steel, Malleable Iron, PVC

Standards

BS 4568, BS 31, BS 4662, BS EN 50086, BS EN 61386

Application

Cable Management System

Finishing

Pre-Galvanised, Hot Dipped Galvanised, Galvanised, Black (PVC)

Note: For complete details, download our catalogue.

Download Catalogue
