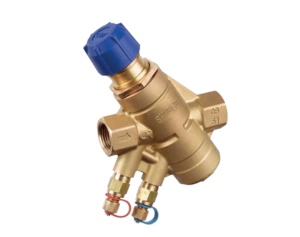

SHIELD Pressure Independent Control Balancing Valve
SD-9776
SHIELD Balancing Valve designed for automatic balancing of heating and cooling system, regardless of fluctuating pressure conditions of the system.
Sizes
15mm - 50mm
Working Pressure
PN25
Working Temperature
0°C - 120°C
Flow Rate
78 l\h up to 8586 l/h
Differential Pressure
4 Bar
Suitable Media
Water
Application
Chilled Water
Note: See below for technical details…
