Our Product Line

Our Passive Fire System is

Passive Fire Protection

certified

Note: Full details of all passive fire products can be found in catalogue and UL/FM/Certifire certificates.

Cementitious Coating

NAFFCO’s Cementitious Coating a UL Listed Approved. Passive Fire Coating is a spray-applied used to protect the structural steel or concrete from effects of fire. In Addition, fire protection up to 4 hours.

Description:

Type

Water Based

Usage

Interior/Exterior

Standard

ANSI/UL 263 (ASTM E119)

Rating

R15 - R240 - Up to 4 hours

Applications

Steel Structure, Hydrocarbon Industry

Non-Hazardous Material

No Asbestos

Note: For complete details, download our catalogue.

Passive Fire Protection
Passive Fire Protection

Intumescent Paint

NAFFCO’s Certifire Approved Intumescent Paint, a fire retardant designed used to protect steel structures, concrete and other construction materials. In addition, fire protection up to 3 hours.

Description:

Type

Water Based/Solvent Based

Usage

Interior/Exterior

Standard

BS 476

Rating

R15 - R180 - Up to 3 hours

Applications

Steel Structure, Concrete, other construction materials

Non-Hazardous Material

No VOC, Halogens APEO, Borates, FIbers, Silicones & Plasticisers

Note: For complete details, download our catalogue.

Cable Coating

NAFFCO’s UL & FM Approved Cable Coating used to avoid the high risk of smoke and release of corrosive & toxic gases from cable insulations. It can also be used on coating pipes.

Description:

Type

Water Based

Usage

Interior/Exterior

Standard

FM 3971

Applications

Cables, Pipes

Non-Hazardous Material

No Halogens

Note: For complete details, download our catalogue.

Passive Fire Protection
Passive Fire Protection

Duct Coating

NAFFCO’s Certifire approved Duct Coating, a water-based intumescent paint based on non-flammable resin with special pigment. In addition, it is highly efficient and also resistive against fire.

Description:

Type

Water Based

Usage

Interior/Exterior

Colour

White

Application

Duct

Standard

BS 476 Part 24:1987

Note: For complete details, download our catalogue.

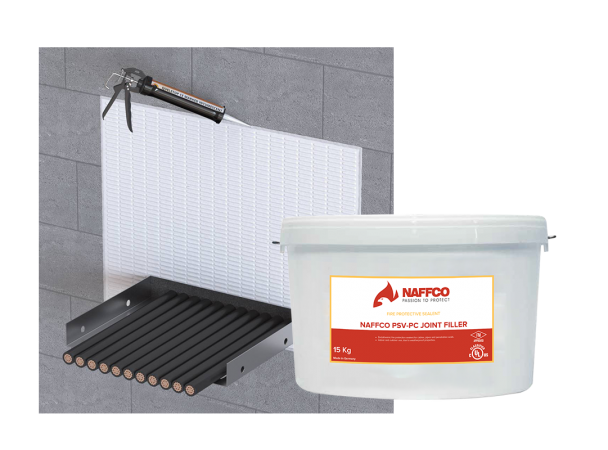

Sealant

NAFFCO’s Passive Fire Protective Sealant used to joint in compartment walls and floors. Approved weather-resistant product for pipe or combined. In addition, fire protection up to 4 hours.

Description:

Type

Water Based

Usage

Interior/Exterior

Standard

UL 1479 & ASTM E814

Applications

Cables, Pipes

Non-Hazardous Material

No Halogens

Note: For complete details, download our catalogue.

Passive Fire Protection
Passive Fire Protection

Wrap Strip

NAFFCO’s Wrap Strip is an intumescent product, which provides protection against fire to the flammable cables, pipe and non-flammable pipes material with flammable insulation.

Description:

Material

Graphite Based Intumescent Compound

Colour

Anthracite

Operating Temperature

+5° ~ +50°C

Application

Joint Sealing System, Cables, Pipes

Standard

UL 1479 & ASTM E814

Note: For complete details, download our catalogue.

Mortar

Passive Fire protection Mortar applicable for approved fire penetration sealing systems in massive walls and floors with cables, pipes or combine penetrations. In addition, the fire protection up to 4 hours.

Description:

Type

Water Based

Usage

Interior

Standard

UL 1479 & ASTM E814

Applications

Opening in Walls, Floors

Non-Hazardous Material

No Halogens, Asbestos, Fibres & Silica

Note: For complete details, download our catalogue.

Passive Fire Protection
Passive Fire Protection

MgO Board

NAFFCO’s Magnesium Fire rated boards has low CO2 emission level, can bear the fire temperature of 1200°C and also could not burst. Additionally, these boards used for the implementation of various fire protection solutions.

Description:

Material

Magnesium Oxide, Magnesium Chloride, Perlite, Woodchips & Glass Fabric.

Standards

BS EN 13501-1

Usage

Interior/Exterior

Rating

R15 - R120 - Up to 2 hours

Application

Residential, Commercial, Cooling Towers, etc

Classification

A1 Non-Combustible Material

Note: For complete details, download our catalogue.
