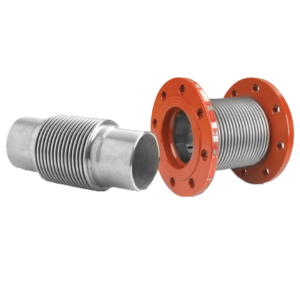

SHIELD Metal Bellows Expansion Joint
SD-918 Series
Axial expansion joints aim to absorb the axial expansions.
Nominal Diameters
DN 25 (1”) ~ DN 2600 (104”)
Working Pressure
PN2.5, PN6, PN16, PN25, PN40, PN64
Working Temperature
-80°C ~ 600°C
Bellow Material
Stainless Steel AISI 321
Flange Material
Carbon Steel St.37.2
Connection Types
Fixed, Floating Flanged, Welded Ended
Suitable Media
Water
Application
Plumbing
Note: See below for technical details…
